Thermacell Blinds

Document

Thermacell Blind Specifications

Easy Reference Size Guide
Operation Type Minimum Size Maximum Size 2 on 1 Inside Deduction Outside Deduction Cell Sizes
Width Height Width Height M2 Width Height Width Height
Corded 220mm 250mm 2500mm 3600mm 5.5m² Yes 6mm*3 0 0 0 All Cell Sizes
SmartRise™ Cordless 280mm, 394mm*4, 635mm*5 250mm 2500mm 2200mm 5.5m² Yes 6mm*3 0 0 0 All Cell Sizes
Cord Loop & Smart Release 380mm 250mm 3000mm 3600mm 7.5m² Yes 6mm*3 0 0 0 All Cell Sizes
SmartFit™ 220mm, 1271mm* 150mm 1270mm, 1800mm* 2200mm 2.6m2, 4m²* No 6mm 0 0 0 All Cell Sizes
SmartFit Dual 220mm 305mm 1270mm, 1800mm* 2200mm 2.6m2, 4m²* No 6mm 0 0 0 All Cell Sizes
SmartFit™ with Frame 267mm 305mm 1318mm, 1877mm* 2235mm 2.75m2, 4m²* No 3.2mm 0 0 0 25mm Only
SmartFit Dual with Frame 267mm 356mm 1318mm 2235mm 2.75m2 No 3.2mm 0 0 0 25mm Only
SmartFit™ Sloped 220mm 150mm 1500mm 3000mm 4.5m² No 3.2mm 0 0 0 25mm Only
SmartFit™ Sloped with Frame 267mm 197mm 1546mm 3092mm 4.67m2 No 3.2mm 0 0 0 25mm Only
TDBU Corded 220mm 250mm 2500mm 3600mm 5.5m² No 6mm*3 0 0 0 All Cell Sizes
TDBU Cordless 380mm, 394mm*4, 635mm*5 250mm 2500mm 2200mm 5.5m² No 6mm*3 0 0 0 All Cell Sizes
TD Cord Loop 610mm, 762mm*2 250mm, 1829mm*2 3000mm 1828mm, 3600mm*2 5.5m², 7.5m² No 6mm*3 0 0 0 All Cell Sizes
Day&Night Corded 220mm 250mm 2500mm 3600mm 5.5m² No 6mm*3 0 0 0 All Cell Sizes
Day&Night Cordless 380mm, 394mm*4 250mm 2500mm 2200mm 5.5m² No 6mm*3 0 0 0 All Cell Sizes
Day&Night Cord Loop 610mm, 762mm*2 250mm, 1829mm*2 3000mm 1828mm, 3600mm*2 5.5m², 7.5m² No 6mm*3 0 0 0 All Cell Sizes
Specialty: Perfect 180° 254mm 127mm 2438mm 1219mm 2.97m² No 4.8mm 0 0 0 25mm, 45mm
Specialty: Quarter 90° 127mm 127mm 1219mm 1219mm 1.48m² No 4.8mm 0 0 0 25mm, 45mm
Sliding & Sliding D&N 750mm 600mm 3700mm 3000mm, 2438mm*6 11.1m², 9m2 *6 No 4.8mm 15.9mm 0 12.7mm 45mm, 62mm, single
Motorised Cordless 610mm 250mm 3000mm 3600mm 11.1m² No 9.5mm 0 0 0 All Cell Sizes
Motorised TDBU 610mm 250mm 3000mm 3600mm 5.57m² No 9.5mm 0 0 0 All Cell Sizes
Motorised D&N 610mm 250mm 3000mm 3600mm 5.57m² No 9.5mm 0 0 0 All Cell Sizes

* SmartFit 25mm cell blind over 1271mm wide will be supplied with centre cords. Smartfit Dual 25mm cell maximum width 1270mm.
* SmartFit in frame blind over 1318mm wide will be supplied with centre cords
* 2 Minimum width when opening height is greater than 1828mm.
* 3 Deduction is -9.5mm when ordered with hold down bracket and/or light guards
* 4 Minimum width when SOLUS fabric is ordered.
* 5 Minimum width when FLAME RESISTANT fabric is ordered
* 6 Maximum height and sqm when FLAME RESISTANT fabric is ordered
For the maximum and minimum sizes for 2on1 shades, please refer to the relevant operation type sections
All measurements listed above are final blind size measurements

Santa Fe – Blind Training & Specification Manual

More Interior Blinds Galleries

Stylish apartment with roller blinds in main bedroom

Bedroom Blinds

Blinds in your bedroom add warmth, comfort and lightening/darkening features.

View Gallery

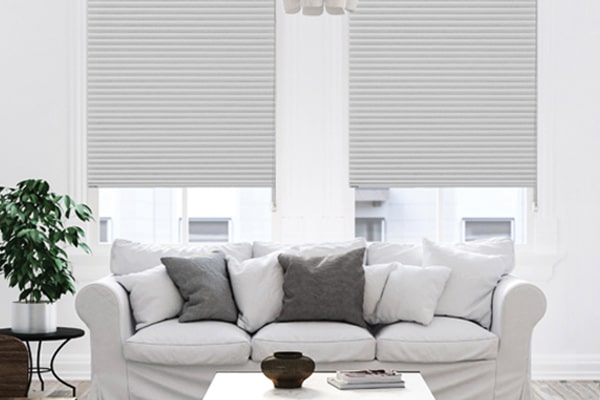

Thermacell blinds in lounge
